Compact KNX dimmers with integrated security by Weinzierl

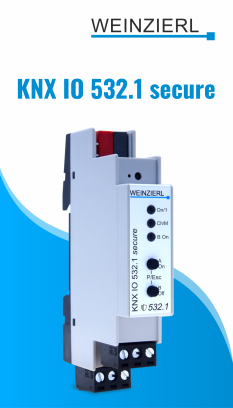

KNX IO 532.1 secure
The most compact and space saving KNX dimmer for low voltage – PWM!

The KNX IO 532.1 secure is a compact combined dimming/switching actuator with 1 PWM dimming output for LEDs and 1 bistable relay output.
The dimming actuator can be used e.g. for LED panels or stripes. Besides controlling the dimmer by switching, rel. dimming and dimming value, several optional functions are integrated, including scenes, automatic, slumber function or staircase light.
The switching actuator provides the function for universal outputs including scene control, timer, staircase lighting and heating valves (PWM for thermoelectric valve drives).
Two push buttons and three LEDs allow a local operation and a visualization of the device state.
In addition to the output channels the device includes 16 independent functions for logic or timer control.
The device supports KNX Data Security.

.

KNX IO 530.1 secure
The most compact and space saving KNX dimmer for 230V!

The KNX IO 530.1 secure is a compact 230 V dimmer with 1 dimming output and 2 binary inputs.
The dimming actuator can be used for dimmable electric lights supplied with 230 V mains. To cover a wide range of usable electric lights the KNX IO 530.1 secure can operate with trailing or leading edge dimming.
Besides controlling the light by switching, rel. dimming and dimming value, several optional functions are integrated, including scenes, automatic, slumber function, staircase light and sequencer.
The inputs can be connected to conventional switches with an external voltage of 230 V.
Two push buttons and three LEDs allow a local operation and a visualization of the device state.
In addition to the output and input channels the device includes 16 independent functions for logic or timer control.

The device supports KNX Data Security.

For further information, please visit the Weinzierl homepage:
www.weinzierl.de
